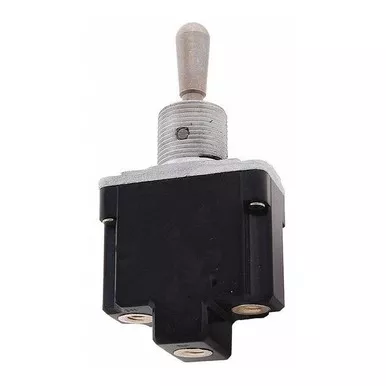

Toggle Switch – SPST, Momentary ON-OFF, 10A 125V AC, IP67-IP68 Rated1NT1-6

Honeywell NT Series Toggle Switch is a single-pole, single-throw (SPST) switch suitable for applications within the specified environmental ratings. It features a standard metal lever actuator with a silver finish and includes a bushing, case, cover, and toggle lever. The switch offers momentary ON/maintained OFF functionality and is rated IP67/IP68 and NEMA types 13, 3, 3R, and 4 per manufacturer specifications; see datasheet for details.Key Features: – Contact Ratings: 10A @ 125V AC / 250V AC; 15A @ 28V DC – Actuator: Standard metal lever; silver color; length 0.67 in – Mounting: Step base type; mounting hole diameter 0.47 in – Protection Ratings: IP67/IP68; NEMA types 13, 3, 3R, and 4 – Operating Temperature Range: -85°F to +160°F (-40°C to +71°C) – Terminals: Screw connection type with two connections – Dimensions: Overall height 2.3 in; width 0.62 in; depth 1.12 in – Certifications: CE marked, CSA certified, UL listed
