Technical Specifications
General
| Application |

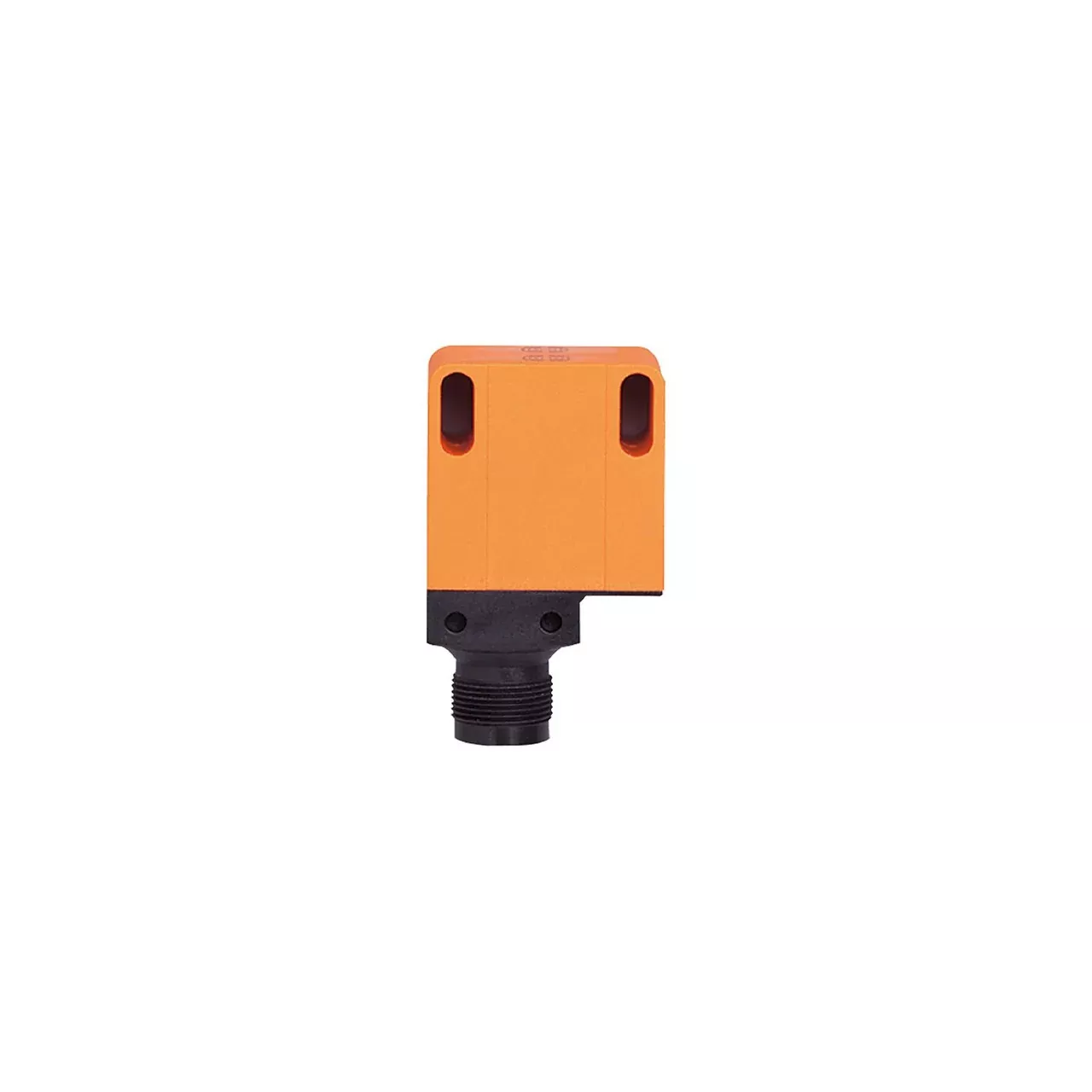

Position sensor for valve actuators |
| Ambient Temp. |
-25°C to 80°C |
| Output Function |
2 x Normally Open |
| Frequency |
47-63 Hz (AC) |
| Switching Frequency |
25 Hz (AC), 40 Hz (DC) |
| Sensing Range |
4mm |
| Real Sensing Range Tolerance |
±10% |
| Hysteresis and Accuracy |
1-15 % of range; drift ±10 % |
| Protection Class |
IP67 |
| Mounting |
Non-flush mountable |
| Display |
Switching status: 2 x LED, Yellow |
| Brand |
IFM |
| Manufacturer Part |
IN0108 |
| Size |
IN0108 |
| Country of Origin |
Made in Germany |
Performance
| Operating Voltage |
20-250V AC/DC |
| Permanent Current Rating |
250 mA standard rating; 350 mA max at ? 50 °C (AC), 100mA (DC) |
| Operating Distance |
0-3.25 mm |
Connections
| Connection |
Connector: 1 x M18; coding: A |
Dimensions & Weight
Download Specification Sheet (PDF)
