Technical Specifications
General

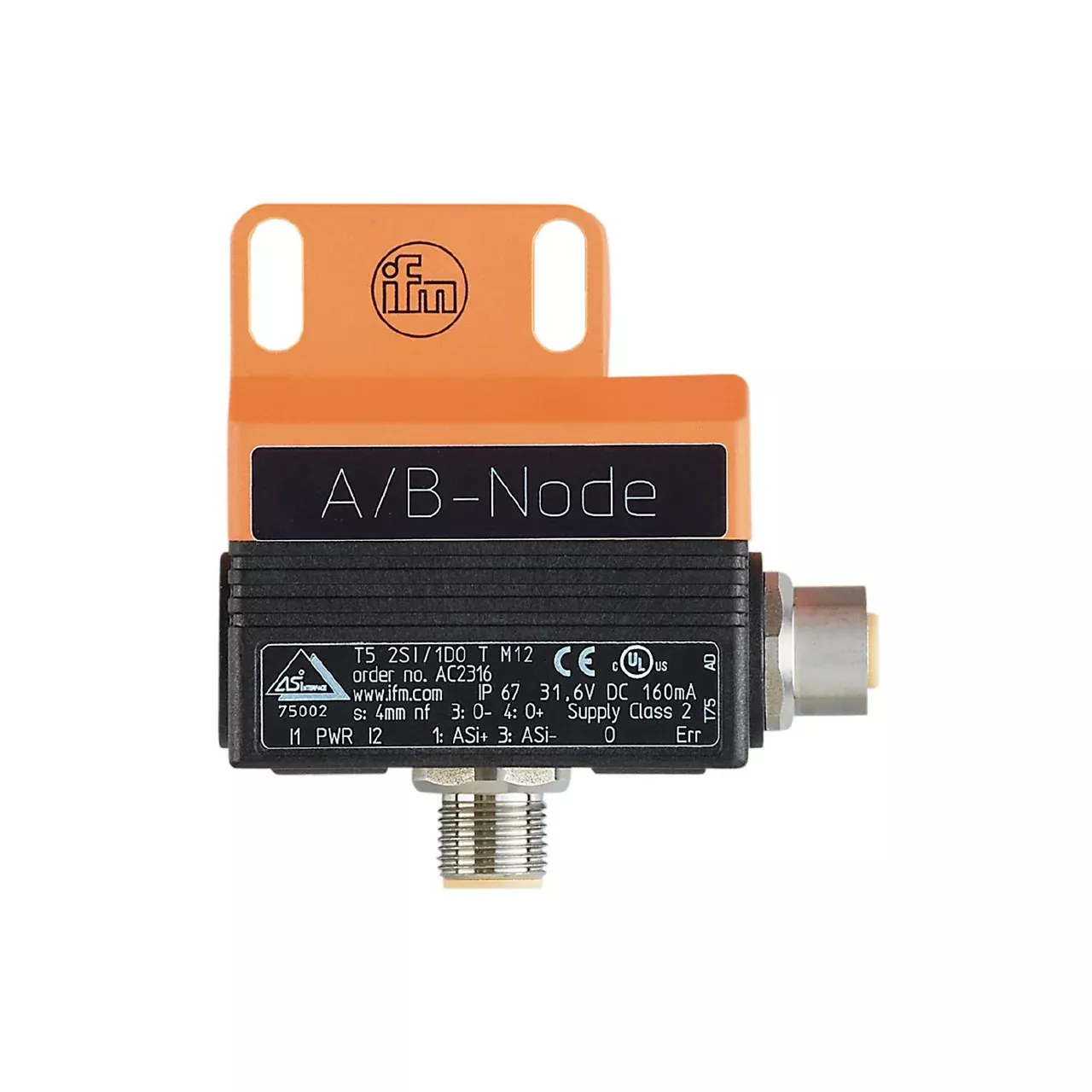

| Application | Position sensor for valve actuators; actuator control |
|---|---|
| Electrical Design | AS-i |
| Sensing Range | 4mm |
| Current Consumption | <160 mA |
| Protection | IP67 |
| Display | Switching Status: 2 x LED, Yellow |
| Installation Specification | Mounting: Non-flush mountable |
| Brand | IFM |
| Manufacturer Part | AC2316 |
| Country of Origin | Made in Germany |
Performance
| Operating Voltage | 26.5–31.6 V (requires cULus Class 2 power source) |
|---|---|
| Ambient Temperature | -20°C to 70°C |
| Permanent current rating of switching output DC | 100V |
Download Specification Sheet (PDF)
