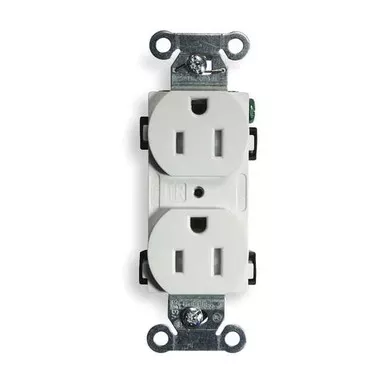

Hubbell Wiring Device-Kellems BR15WHITR

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a [Omit or replace with ‘commercial grade’ if verified by supplier] duplex outlet intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for durability. This receptacle supports both back and side wiring methods, accommodating 14 to 10 AWG copper conductors, and is rated for 15 amps at 125 volts AC with a NEMA 5-15R configuration.Key Features of the HUBBELL – 15A Duplex Receptacle: Tamper-: Built-in shutters are intended to reduce the risk of foreign object insertion.Wiring Options: Supports both back and side wire connections using screw terminals.Material Construction: Nylon housing with brass triple wipe contacts; galvanized steel mounting strap.Electrical Ratings: Rated for 15 A, 125 V AC; maximum wattage of 1875 W; suitable for single-phase applications.Grounding: Grounded design complies with WC596G specifications.NEMA Configuration: Standard NEMA 5-15R duplex straight blade layout.Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, NEMA WD-6 compliant.Operating Temperature Range: -40°C to +75°C (without impact); withstands dielectric voltage up to 2,000V minimum.
