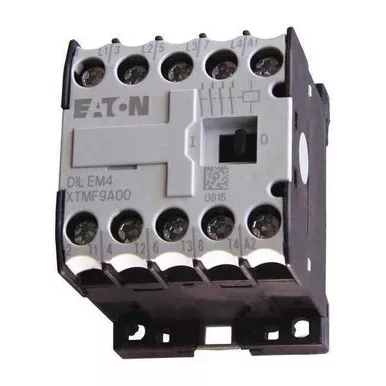

Eaton XTMF9A00B

The Eaton XT IEC Miniature Magnetic Contactor is a compact, 4-pole, non-reversing magnetic switch operated by a 240 V AC coil. It features screw terminals and an embedded surge suppressor, with no auxiliary contacts. Suitable for DIN-rail or panel mounting applications, it is rated for operation within the specified voltage ranges (up to 690V AC/DC) and carries multiple certifications (CE Marked; CSA Certified; EN 60947; IEC 60947; RoHS; UL Listed). Enclosure: listed as “No Enclosure” with an IP20 protection rating.- Coil Voltage: 240 V AC – Action: Non-Reversing – Number of Poles: 4 – Auxiliary Contacts: None (0 NO/0 NC) – Contact Configuration: 0 NO, 0 NC – Electrical Connection: Screw Terminals – Embedded Surge Suppressor: Yes – Enclosure: listed as “No Enclosure” – IP Rating: IP20 – Mounting Style: DIN Rail, Panel – Frame/Series/Code: XT / Frame A – Standards: CE Marked; CSA Certified; EN 60947; IEC 60947; RoHS; UL Listed – Maximum Voltage Rating: 690V AC/DC – Frequency: 50/60 Hz – Phase: Three – Type: Full voltage non-reversing mini contactor – Width: 2.5 in; Height: 2 in; Depth: 2.5 in – Connection Type: Screw – Reversing Capability: No – Product Name: Eaton XT IEC mini contactor
